Ace Frame Mounted Centrifugal Pumps





PUMP MAY NOT BE IN STOCK AND MAY HAVE TO BE ORDERED FROM THE MANUFACTURER. SPECIAL PUMPS WILL HAVE TO BE ORDERED AND WILL BE MADE BY MANUFACTURER AFTER THE ORDER IS PLACED.




Features





  • Recommended for use on the following Hydraulic Systems:
    • Pressure Compensating Closed Center
    • Load Sensing or Pressure Flow Compensating Closed Center
    • Open Center up to 16 GPM (60 LPM)
  • Integral Needle Valve bypasses up to 9 GPM (34 LPM) on Open Center Systems
  • Standard Viton Carbon/Ceramic Seal or optional Severe Duty Silicon Carbide Mechanical Seal
  • Chemical Resistant Valox or optional Cast Iron or Polypropylene Impeller
  • Stainless Steel Shaft and Wear Ring

    Details
  • 316 Stainless Steel Centrifugal driven by a 7 GPM hydraulic motor with integral needle valve
  • -CI: Cast Iron Impeller
  • Max Flow: 145 GPM
  • Max Pressure: 120 PSI
  • Suction: 1-1/2" NPT & 220 Full Port Flange
  • Discharge: 1-1/4" NPT & 200 Standard Port Flange

    More Information
    Click here for Ace Product Sheet
    Click here for more detailed information

California Proposition 65 Information and Warnings
State of California Proposition 65 Warnings

Items listed on this site are Known to the State of California to cause [Cancer] [Birth Defects or other Reproductive Harm.

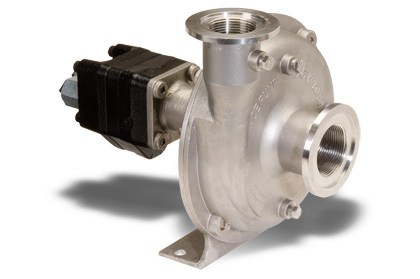

Ace FMC-150FS-HYD-206-CI (49967) 316 SS Centrifugal 7 GPM Hydraulic Motor Driven

FMC-150FS-HYD-206-CI

Ace Frame Mounted Centrifugal Pumps     PUMP MAY NOT BE IN STOCK AND MAY HAVE TO BE ORDERED FROM THE MANUFACTURER. SPECIAL PUMPS WILL HAVE TO BE ORDERED AND WILL BE MADE BY MANUFACTURER AFTER THE ORDER IS PLACED.   Features     Recommended for us...
  • Shipping Weight: 32.0067 lbs
  • Manufactured by: Ace Pumps
1000 Units in Stock
$1,982.00

Current Reviews: 0

Date Added: Friday 21 June, 2013
